Siyah Kauçuk / Teflon Çift Diyaframlı Pompa Yüksek Basınç 8.3bar
Kauçuk, termoplastik veya teflondiaframın pistonlu hareketinin ve diyaframın her iki tarafındaki uygun valflerin karşılıklı hareketinin bir kombinasyonunu kullanan Hava diyafram pompası ( Membran pompası, hava ile çalışan çift diyaframlı pompa (AOOD) veya pnömatik diyafram pompası olarak da bilinir) bir sıvıyı pompalamak için kelebek vanalar, kapak vanaları veya diğer herhangi bir kapatma vanaları).
| madde | Açıklama | birim | Referans Şekil |
| 1 | Maksimum hava giriş basıncı | mpa | 0,83 |
| 2 | Maksimum akış hızı | L / dak | 667 |
| 3 | Maksimum kaldırma | M | 70 |
| 4 | Maksimum çıkış basıncı | mpa | 0,83 |
| 5 | Maksimum parçacık büyüklüğü | aa | 7 |
| 6 | Ağırlık | kilogram | 28 |
| 7 | Gürültü seviyesi | db | <70 |
Özellikler
Hava Diyafram Pompası
1. Sızdırmaz
2. İyi kendinden emişli performans
3. Orta her türlü iletmek
4. Malzeme: Dökme çelik, Alu, SS, PP
A 40 XX - XXX - X ( model seçimi)
Boru ağzı şekli: A-BSP B-NPT (F) C-Flanş
Diyafram malzemesi: 9 - Santopren H - Hytrel T - PTFE / Santopren
Top malzemesi: 9 -Santopren H - Hytre T - PTFE A - Asetal
Top koltuk malzemesi: P / K - Polipropilen / Kynoar SS - Paslanmaz Çelik
Pompa malzemesi: SS - Paslanmaz Çelik AL - Alüminyum Alaşımlı CI - Karbon Çelik P / K - Polipropilen / Kynoar
Uygulanan Maksimum Sıcaklık Limitleri (diyafram / bilye / conta malzemesi)
Asetal ································· 40 ° 40 ° A - 150 ° F (4.4 - 65.5 ° C)
Santoprene ················································· ········································· -40 ° - 225 ° F (-40 °) - 107.2 ° C) Teflon ········································································· ······························································ ···· 40 ° - 220 ° F (4.4 ° - 104 ° C) Nitril ··················································· ······························································ ···················· 10 ° - 180 ° F (-12 ° - 82 ° C) Viton ·· ················· ······························································ ································· -40 ° - 350 ° F (-40 ° -176.6 ° C) Hytrel · ·· ··································· ······························································ ············ -20 ° -150 ° F (-12 ° - 93 ° C) Kynar ······································· ······························································ ························ 10 ° -200 ° F (-28.9 ° - 65.5 ° C), polipropilen ·········· ······························································ ································· 32 32 - 175 ° F (0-79,4 ° C)

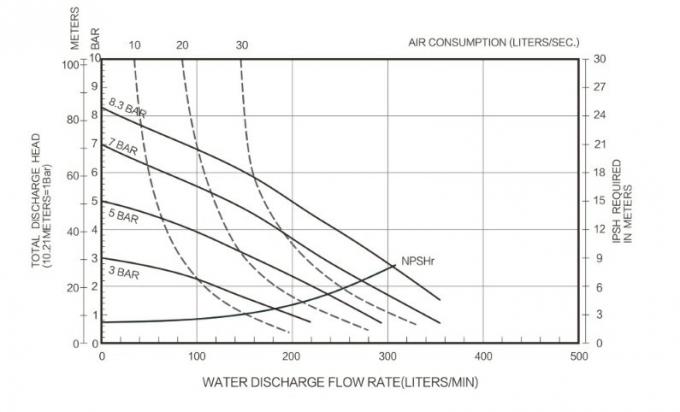

1.5 ” Akış diyagramı
Genel açıklama
BSK diyafram pompası, düşük hava basıncında ve mevcut yol malzeme uyumluluk seçeneklerinde bile yüksek hacimli teslimat sunar.
Havayla çalışan diyafram pompası alternatif olarak hava odasındaki basınç farkını kullanarak sıvı akışkandaki emme sıvısı basıncını ve pozitif sıvı basıncını üretir. Küresel vana ileri sıvı akışını sağlayabilir.
Pompa basıncı, hava basıncı uygulandığında başlayacak ve pompalamaya ve talebe yetişmeye devam edecektir. Hat basıncını koruyacak ve koruyacak ve maksimum hat basıncına ulaşıldıktan sonra (dağıtım cihazı kapalı) devir durduracak ve gerektiğinde pompalamaya devam edecektir.
