| Yakıt:: | hava ile çalışan | Motorlu:: | Pnömatik |
|---|---|---|---|
| Ürün adı: | hava ile çalışan diyafram pompası | Garanti:: | bir yıl |
| Vurgulamak: | Diyafram yağ transfer pompası,hava ile çalışan dalgıç pompa |
||

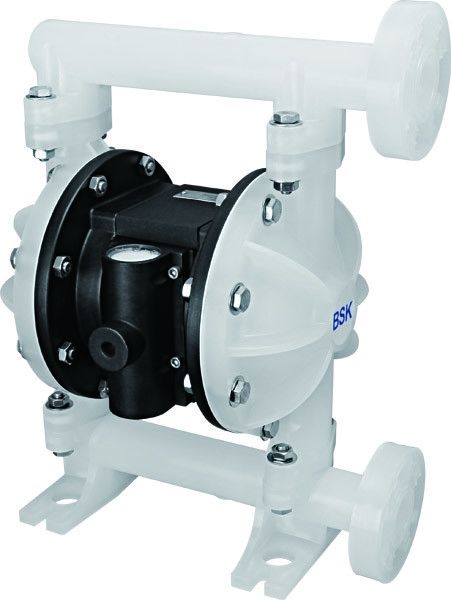

Pnömatik Pozitif Yer Değiştirme Pompası Termoplastik / Kauçuk Diyafram Pompası
Kauçuk, termoplastik veya teflondiaframın pistonlu hareketinin ve diyaframın her iki tarafındaki uygun valflerin karşılıklı hareketinin bir kombinasyonunu kullanan Hava diyafram pompası ( Membran pompası, hava ile çalışan çift diyaframlı pompa (AOOD) veya pnömatik diyafram pompası olarak da bilinir) bir sıvıyı pompalamak için kelebek vanalar, kapak vanaları veya diğer herhangi bir kapatma vanaları).
Ürün Açıklaması
1. Çift Diyaframlı Pompa Hava ile Çalışan Çift Diyaframlı Pompa Kauçuk ve Gıda Kimyasalları için Kimyasal Diyaframlı Kauçuk Diyaframlı Pompa, güç kaynağı olarak basınçlı hava, duman ve endüstriyel egzoz gazını benimseyen taşıma makinesinin yeni türüdür.
2. İki diyaframı vardır, pompayı emme ve serbest bırakma işlemi sırasında pompayı çalıştırmak için pompa gövdesine gelir, böylece sıvıları bu prensiple kolayca pompalayabilir. Ayrıca tehlikeli bir ortamda, elektrik motoru olmadığından çok güvenlidir.
3. hava ile çalışan çift diyaframlı pompalar yalnızca akış sıvısını transfer etmekle kalmaz, aynı zamanda kendinden emişli pompanın, dalış pompasının, kalkan pompanın, bulamaç pompanın ve kirlilik pompasının vb.
Özellikler
Hava Diyafram Pompası
1. Sızdırmaz
2. İyi kendinden emişli performans
3. Orta her türlü iletmek
4. Malzeme: Dökme çelik, Alu, SS, PP
| madde | Açıklama | birim | Referans Şekil |
| 1 | Maksimum hava giriş basıncı | mpa | 0,69 |
| 2 | Maksimum akış hızı | 1 dakika | 46 |
| 3 | Maksimum kaldırma | M | 70 |
| 4 | Maksimum çıkış basıncı | mpa | 0,69 |
| 5 | Maksimum parçacık büyüklüğü | aa | 2.5 |
| 6 | Ağırlık | kilogram | 2.8 |
| 7 | Gürültü seviyesi | db | <70 |
A 15 XX - XXX - X ( model seçimi)
Boru ağzı şekli: A-BSP B-NPT (F) C-Flanş
Diyafram malzemesi: 9 - Santopren H - Hytrel T - PTFE / Santopren
Top malzemesi: 9 -Santopren H - Hytre T - PTFE A - Asetal
Top koltuk malzemesi: P / K - Polipropilen / Kynoar SS - Paslanmaz Çelik
Pompa malzemesi: SS - Paslanmaz Çelik AL - Alüminyum Alaşımlı CI - Karbon Çelik P / K - Polipropilen / Kynoar
Uygulanan Maksimum Sıcaklık Limitleri (diyafram / bilye / conta malzemesi)
Asetal ································· 40 ° 40 ° A - 150 ° F (4.4 - 65.5 ° C)
Santoprene ················································· ········································· -40 ° - 225 ° F (-40 °) - 107.2 ° C) Teflon ········································································· ······························································ ···· 40 ° - 220 ° F (4.4 ° - 104 ° C) Nitril ··················································· ······························································ ···················· 10 ° - 180 ° F (-12 ° - 82 ° C) Viton ·· ················· ······························································ ································· -40 ° - 350 ° F (-40 ° -176.6 ° C) Hytrel · ·· ··································· ······························································ ············ -20 ° -150 ° F (-12 ° - 93 ° C) Kynar ······································· ······························································ ························ 10 ° -200 ° F (-28.9 ° - 65.5 ° C), polipropilen ·········· ······························································ ································· 32 32 - 175 ° F (0-79,4 ° C)

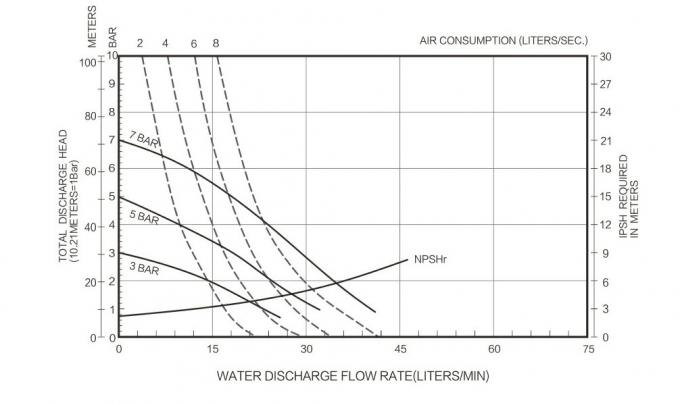

0.5 " Akış diyagramı
Bakım
