Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
| Üretim: | Pnömatik diyaframlı pompa | Özelliği: | verimli |
|---|---|---|---|
| Maksimum kaldırma: | 70m | Gürültü seviyesi: | <70dB |
| Max akış: | 192 | Max Hava Basıncı: | 8.3bar |
| basınç oranı: | 1: 1 | geçiş oranı: | 3mm |
| Emme kafası kaldırma: | 20m | Ağırlık: | 12.3kgs |
| Vurgulamak: | Hava ile çalışan çift diyaframlı pompa,çift diyaframlı pompa |
||

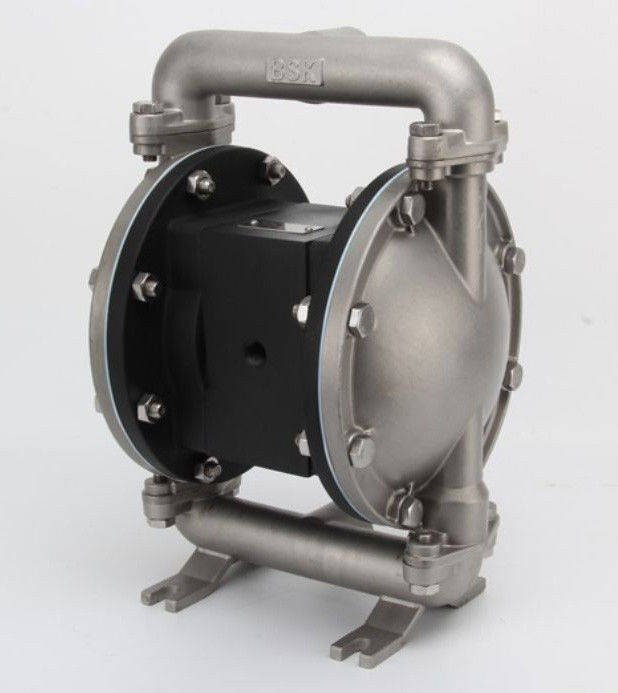

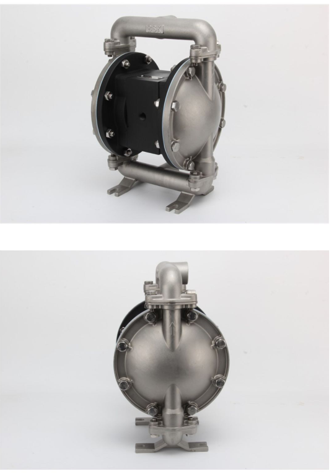

Kimyasal Dirençli Hava Tahrikli Çift Diyaframlı Pompa Kendinden Emişli Suya Girme Özelliği
Pnömatik Diyafram Pompası Avantajları:
Kauçuk, termoplastik veya teflondiaframın pistonlu hareketinin ve diyaframın her iki tarafındaki uygun valflerin karşılıklı hareketinin bir kombinasyonunu kullanan Hava diyafram pompası ( Membran pompası, hava ile çalışan çift diyafram pompası (AOOD) veya pnömatik diyafram pompası olarak da bilinir) bir sıvıyı pompalamak için kelebek vanalar, kapak vanaları veya diğer herhangi bir kapatma vanaları).
| madde | Açıklama | birim | Referans Şekil |
| 1 | Maksimum hava giriş basıncı | mpa | 0,83 |
| 2 | Maksimum akış hızı | L / dak | 192 |
| 3 | Maksimum kaldırma | M | 70 |
| 4 | Maksimum çıkış basıncı | mpa | 0,83 |
| 5 | Maksimum parçacık büyüklüğü | aa | 3 |
| 6 | Ağırlık | kilogram | 12.3 |
| 7 | Gürültü seviyesi | db | <70 |
A 2 5 XX - XXX - X ( model seçimi)
Boru ağzı şekli: A-BSP B-NPT (F) C-Flanş
Diyafram malzemesi: 9 - Santopren H - Hytrel T - PTFE / Santopren
Top malzemesi: 9 -Santopren H - Hytre T - PTFE A - Asetal
Top koltuk malzemesi: P / K - Polipropilen / Kynoar SS - Paslanmaz Çelik
Pompa malzemesi: SS - Paslanmaz Çelik AL - Alüminyum Alaşımlı CI - Karbon Çelik P / K - Polipropilen / Kynoar
Uygulanan Maksimum Sıcaklık Limitleri (diyafram / bilye / conta malzemesi)
Asetal ································· 40 ° 40 ° A - 150 ° F (4.4 - 65.5 ° C)
Santoprene ··········································---40 ° - 225 ° F 40 ° - 107.2 ° C) Teflon ········································································ ········ 40 ° - 220 ° F (4.4 ° - 104 ° C) Nitril ··········································· ··········································································· z ········································ -40 ° - 350 ° F (-40 ° - 176.6 ° C) Hytrel · ········································································ ···· -20 ° -150 ° F (-12 ° - 93 ° C) Kynar ················································ ····································································· z ···························· 32 32 - 175 ° F (0-79.4 ° C)
1 ” Akış diyagramı
Kurulum boyutları :
