Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
| Adı: | Yüksek Viskoziteli Diyafram Pompası | Maksimum kaldırma: | 70m |
|---|---|---|---|
| Ağırlık: | 103kg | Güç: | Gaz |
| Özelliği: | Taşınabilir | Uygulama: | Yüksek viskoziteli |
| Vurgulamak: | Pnömatik çift diyaframlı pompa,pnömatik hava pompası |
||

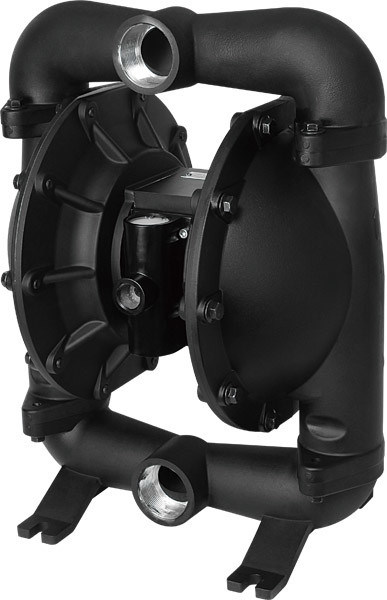

Gaz Yüksek Viskoziteli Diyafram Pompası / Taşınabilir Çift Diyaframlı Hava Pompası
Yüksek Viskoziteli Diyafram Pompa Uygulaması
çözücü
asit
Aşındırıcı sıvı
Yüksek viskoziteli sıvı, yüksek basınç iletimi
Büyük katı parçacık iletimi
Aşındırıcı ortam
tehlikeli ve yanıcı sıvı
Temiz oda sıvı
Yüksek Viskoziteli Diyafram Pompa Parametreleri
| madde | Açıklama | birim | Referans Şekil |
| 1 | Maksimum hava giriş basıncı | mpa | 0,83 |
| 2 | Maksimum akış hızı | L / dak | 903 |
| 3 | Maksimum kaldırma | M | 70 |
| 4 | Maksimum çıkış basıncı | mpa | 0,83 |
| 5 | Maksimum parçacık büyüklüğü | aa | 9 |
| 6 | Ağırlık | kilogram | 103 |
| 7 | Gürültü seviyesi | db | <70 |
Yüksek Viskoziteli Diyafram Pompası Detaylar
A 80 XX - XXX - X (model seçimi)
Boru ağzı şekli: A-BSP B-NPT (F) C-Flanş
Diyafram malzemesi: 9 - Santopren H - Hytrel T - PTFE / Santopren
Top malzemesi: 9 -Santopren H - Hytre T - PTFE A - Asetal
Top koltuk malzemesi: P / K - Polipropilen / Kynoar SS - Paslanmaz Çelik
Pompa malzemesi: SS - Paslanmaz Çelik AL - Alüminyum Alaşımlı CI - Karbon Çelik P / K - Polipropilen / Kynoar
Uygulanan Maksimum Sıcaklık Limitleri (diyafram / bilye / conta malzemesi)
Asetal ································· 40 ° 40 ° A - 150 ° F (4.4 - 65.5 ° C)
Santoprene ··········································· - -40 ° - 225 ° F -40 ° - 107.2 ° C) Teflon ······································································· ······· 40 ° - 220 ° F (4.4 ° - 104 ° C) Nitril ············································· ························ 10 10 - 180 ° F (-12 ° - 82 ° C) Viton · Viton ··············· ···································· -40 ° - 350 ° F (-40 ° -176.6 ° C) ) Hytrel · ····························································· veya · -20 ° -150 ° F (-12 ° - 93 ° C) Kynar ··················································· ·················· 10 ° -200 ° F (-28.9 ° - 65.5 ° C) Polipropilen ·················· ························ 32 32 - 175 ° F (0-79,4 ° C)
3 "Akış diyagramı
