Aşındırıcı Sıvılar Büyük Debili Hava Tahrikli Çift Diyaframlı Pompa

Aşındırıcı Sıvılar Büyük Debili Hava Tahrikli Çift Diyaframlı Pompa

Hava Tahrikli Çift Diyaframlı Pompa tanıtımı

Firmamız tarafından üretilen Hava Tahrikli Çift Diyaframlı Pompa, çeşitli aşındırıcı sıvıları, parçacıklı sıvıları, yüksek viskoziteli, uçucu, yanıcı ve toksik sıvıları taşıyabilen yeni bir taşıma makinesidir.

Pompalar, farklı uygulanabilir koşullara göre dört malzemeden yapılmıştır: plastik, alüminyum alaşımı, dökme demir ve paslanmaz çelik.

Diyaframlı pompalar, farklı sıvı ortamlara göre sırasıyla Ding Qing kauçuk, neopren, flororubber, politetrafloroetilen ve politetrafloroetilen'i benimser.

Farklı kullanıcıların ihtiyaçlarını karşılamak için.

Çeşitli özel durumlarda monte edildiğinde, geleneksel pompalarla pompalanamayan çeşitli ortamları tatmin edici sonuçlarla pompalamak için kullanılabilir.

Diyaframlı pompalar boya püskürtme ve seramik endüstrilerinde yaygın olarak kullanılmaktadır.

pnömatik diyafram pompası havayı güç olarak kullanır, bu nedenle akış hızı, orta ve yüksek viskoziteli sıvılar için uygun olan geri basınç değişimine (çıkış direnci) otomatik olarak ayarlanır.

Hava Tahrikli Çift Diyaframlı Pompa Açıklama:

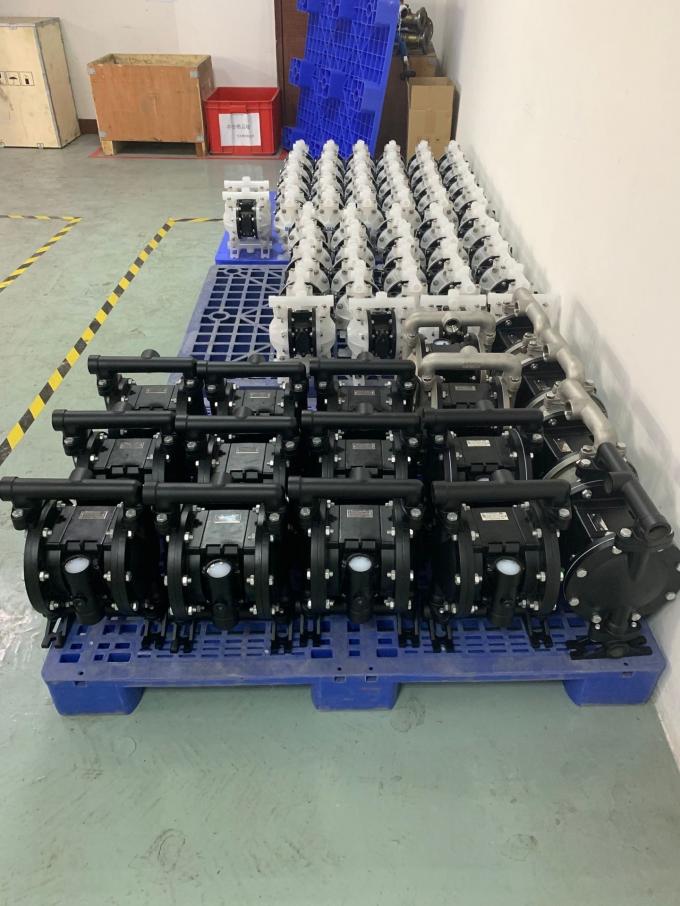

Hava Tahrikli Çift Diyaframlı Pompa Paketleme ve Teslimat

Hava Tahrikli Çift Diyaframlı Pompa Özelliği

1. Olmayan sızıntı
2. İyi kendinden emişli performans
3. her türlü Taşıma orta
4. Malzeme: Dökme çelik, Alu, SS, PP

A 2 5 XX - XXX - X (model seçimi)

Boru ağzı şekli: A-BSP B-NPT (F) C-Flanş

Diyafram malzemesi: 9 - Santoprene H - Hytrel T - PTFE / Santoprene

Top malzemesi: 9 -Santoprene H - Hytre T - PTFE A - Asetal

Top yatak malzemesi: P / K –Polypropylene / Kynoar SS –Paslanmaz Çelik

Pompa malzemesi: SS –Paslanmaz Çelik AL –Alüminyum Alaşımlı CI- Karbon Çelik P / K –Polypropilen / Kynoar

Ana Performans Parametreleri

Parametre İsimleri Birimleri Referans Değerleri

1 Maks. Çalışma Hava Basıncı Mpa 0.83

2 Maks. Akış l / dak 135

3 Maks. Kafa m 70

4 Maks. Sıvı Çıkış Basıncı Mpa 0.83

5 Maks. Tanecik Çapı mm 3

6 Ağırlık kg 9,5 / 12,5 (PP / KV) /9,5 (AL) / 14,5 (SS / CI)

7 Gürültü Seviyesi db <85

Uygulanan Maksimum Sıcaklık Sınırları (diyafram / bilya / conta malzemesi)

Asetal ··········································· 40 ° 40 ° - 4,4-65,5 ° C (150 ° F)

Santoprene ················································· ········································--40 ° - 225 ° F (-40 °) - 107.2 ° C) Teflon ············································································································································································· ······························································ ····· 40 ° - 220 ° F (4.4 ° - 104 ° C) Nitril ··································································· ······························································ ····················· 10 ° - 180 ° F (-12 ° - 82 ° C) Viton ················· ······························································ ······························--40 ° - 350 ° F (-40 ° -176.6 ° C) Hytrel · ·· ··································· ······························································ ············· -20 ° -150 ° F (-12 ° - 93 ° C) Kynar ······················ ······························································ ························ 10 ° -200 ° F (-28.9 ° - 65.5 ° C) Polipropilen ··········· ······························································ ································· 32 ° - 175 ° F (0-79.4 ° C)

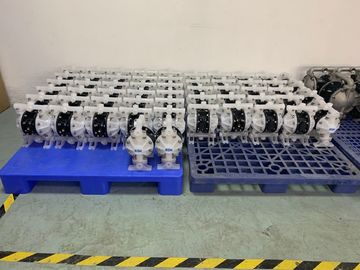

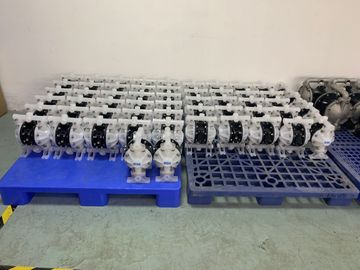

Hava Tahrikli Çift Diyaframlı Pompa Detaylar
