Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
| Adı: | Pnömatik diyaframlı pompa | Maksimum kaldırma: | 70m |
|---|---|---|---|
| Ağırlık: | 103kg | Güç: | Basınçlı Havayla Çalışan |
| Özelliği: | Taşınabilir | Uygulama: | Sıvı Taşımacılığı |
| Vurgulamak: | pnömatik çift diyaframlı pompa,pnömatik hava pompası |
||

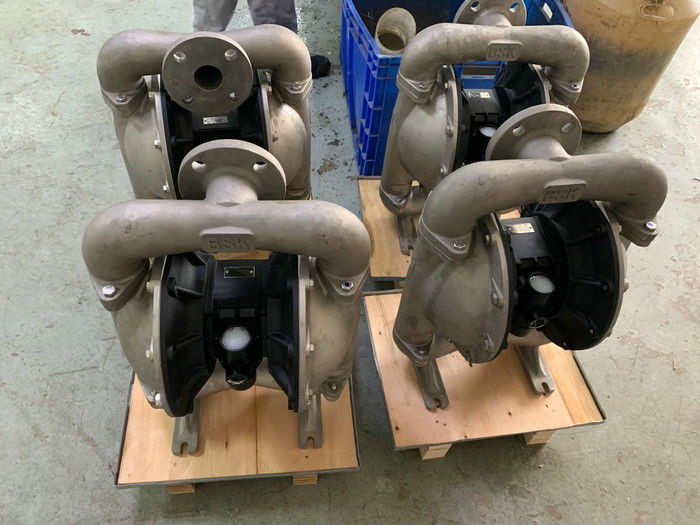

Sıvı Taşımacılığı Pnömatik Diyaframlı Pompa Basınçlı Hava Destekli
Pnömatik Diyaframlı Pompa Özelliği
1. hassas döküm, pürüzsüz yüzey ve iyi görünüm.
2. üç bölüm manifoldu, esnek kurulum.
3. Dört cıvata bağlantı tasarımı, iyi mühür.
4. Yüksek yuvarlaklık vana topu, iyi kuru emme ve düşük hava tüketimi.
Pnömatik Diyaframlı Pompa Uygulaması
Yüksek viskoziteli sıvı yüksek basınç iletimi
Büyük katı parçacık iletimi
Aşındırıcı ortam
tehlikeli ve yanıcı sıvı
Temiz oda sıvısı
Pnömatik Diyafram Pompa Parametreleri
| Açıklama | birim | Referans Şekil |
| Maksimum hava giriş basıncı | mpa | 0,83 |
| Maksimum akış hızı | L / dak | 903 |
| Maksimum kaldırma | M | 70 |
| Maksimum çıkış basıncı | mpa | 0,83 |
| Maksimum parçacık boyutu | aa | 9 |
| Ağırlık | kilogram | 103 |
| Gürültü seviyesi | db | <70 |
Pnömatik Diyaframlı Pompa Dağıtımı
A 80 XX - XXX - X (model seçimi)
Boru ağzı şekli: A-BSP B-NPT (F) C-Flanş
Diyafram malzemesi: 9 - Santoprene H - Hytrel T - PTFE / Santoprene
Top malzemesi: 9 -Santoprene H - Hytre T - PTFE A - Asetal
Top yatak malzemesi: P / K –Polypropylene / Kynoar SS –Paslanmaz Çelik
Pompa malzemesi: SS –Paslanmaz Çelik AL –Alüminyum Alaşımlı CI-Karbon Çelik P / K –Polypropilen / Kynoar
Uygulanan Maksimum Sıcaklık Sınırları (diyafram / bilya / conta malzemesi)
Asetal ············································ 40 ° 40 ° - 4,4-65,5 ° C (150 ° F)
Santoprene ········································--40 ° - 225 ° F ( -40 ° - 107.2 ° C) Teflon ··························································································································· ***** ·········· 40 ° - 220 ° F (4.4 ° - 104 ° C) Nitril ····························································· ······················· 10 ° - 180 ° F (-12 ° - 82 ° C) Viton ··············· ····································--40 ° - 350 ° F (-40 ° -176.6 ° C) ) Hytrel · ································································ · -20 ° -150 ° F (-12 ° - 93 ° C) Kynar ··················································································· ················· 10 ° -200 ° F (-28.9 ° - 65.5 ° C), polipropilen ················· ·························· 32 ° - 175 ° F (0-79.4 ° C)
3 "Akış şeması
