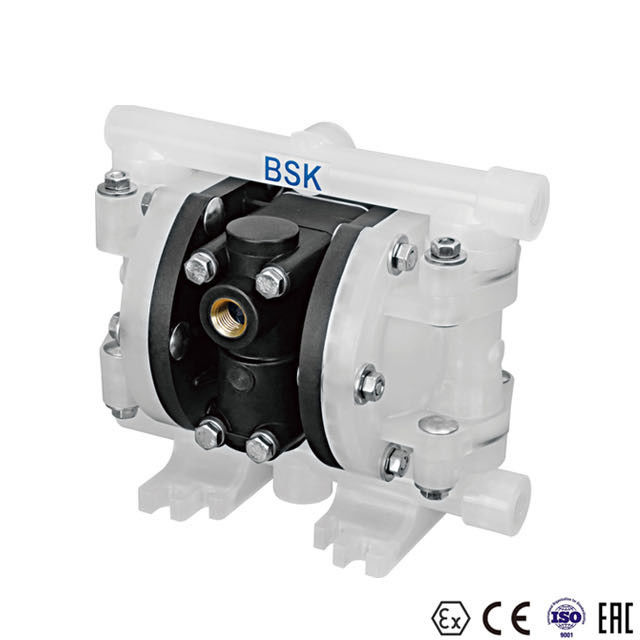

Taşınabilir Hava Tahrikli Çift Diyaframlı Pompa Kimya Endüstrisi Kullanımı

Taşınabilir Hava Tahrikli Çift Diyaframlı Pompa Kimya Endüstrisi Kullanımı

Hava Tahrikli Çift Diyaframlı Pompa Giriş

Hava Tahrikli Çift Diyaframlı Pompa, bir şantiyede pompanın karşılaştığı sayısız sorunu çözmek için tasarlanmıştır. İster sınırlı alanınız olsun, ister karışık katılar veya bileşimlerle sıvıları hareket ettirin, ister işiniz için güvenli bir emiş pompası sistemine ihtiyaç duyun, AOD pompalarımız işi tamamlamak için taşınabilir bir çözüm sunar.

Çift diyaframlı bir sıvı haznesi aracılığıyla çalışan pozitif yer değiştirme, bir hava vakumu oluşturur ve minimum çabayla çabuk hazırlamayı başlatır. Hazırlandıktan sonra, havayla çalışan diyafram pompaları 1 inçlik katılara (% 90'a kadar katı bileşim) ve 25.000 cP'leri aşan yüksek viskoziteli sıvılara geçebilir. AOD Pumps'un sıvı kullanımı, taşınabilirliği ve dayanıklılığı, onları herhangi bir iş uygulaması için çok yönlü bir pompa haline getirir.

Hava Tahrikli Çift Diyaframlı Pompa Açıklama:

Hava Tahrikli Çift Diyaframlı Pompa Paketleme ve Teslimat

Hava Tahrikli Çift Diyaframlı Pompa Özelliği

1. Olmayan sızıntı
2. İyi kendinden emişli performans
3. her türlü Taşıma orta
4. Malzeme: Dökme çelik, Alu, SS, PP

A 2 5 XX - XXX - X (model seçimi)

Boru ağzı şekli: A-BSP B-NPT (F) C-Flanş

Diyafram malzemesi: 9 - Santoprene H - Hytrel T - PTFE / Santoprene

Top malzemesi: 9 -Santoprene H - Hytre T - PTFE A - Asetal

Top yatak malzemesi: P / K –Polypropylene / Kynoar SS –Paslanmaz Çelik

Pompa malzemesi: SS –Paslanmaz Çelik AL –Alüminyum Alaşımlı CI-Karbon Çelik P / K –Polypropilen / Kynoar

Ana Performans Parametreleri

Parametre İsimleri Birimleri Referans Değerleri

1 Maks. Çalışma Hava Basıncı Mpa 0.83

2 Maks. Akış l / dak 135

3 Maks. Kafa m 70

4 Maks. Sıvı Çıkış Basıncı Mpa 0.83

5 Maks. Tanecik Çapı mm 3

6 Ağırlık kg 9,5 / 12,5 (PP / KV) /9,5 (AL) / 14,5 (SS / CI)

7 Gürültü Seviyesi db <85

Uygulanan Maksimum Sıcaklık Sınırları (diyafram / bilya / conta malzemesi)

Asetal ··········································· 40 ° 40 ° - 4,4-65,5 ° C (150 ° F)

Santoprene ················································· ········································--40 ° - 225 ° F (-40 °) - 107.2 ° C) Teflon ············································································································································································· ······························································ ····· 40 ° - 220 ° F (4.4 ° - 104 ° C) Nitril ··································································· ······························································ ····················· 10 ° - 180 ° F (-12 ° - 82 ° C) Viton ················· ······························································ ······························--40 ° - 350 ° F (-40 ° -176.6 ° C) Hytrel · ·· ··································· ······························································ ············· -20 ° -150 ° F (-12 ° - 93 ° C) Kynar ······················ ······························································ ························ 10 ° -200 ° F (-28.9 ° - 65.5 ° C) Polipropilen ··········· ······························································ ································· 32 ° - 175 ° F (0-79.4 ° C)

Hava Tahrikli Çift Diyaframlı Pompa Detaylar
